Available soon!

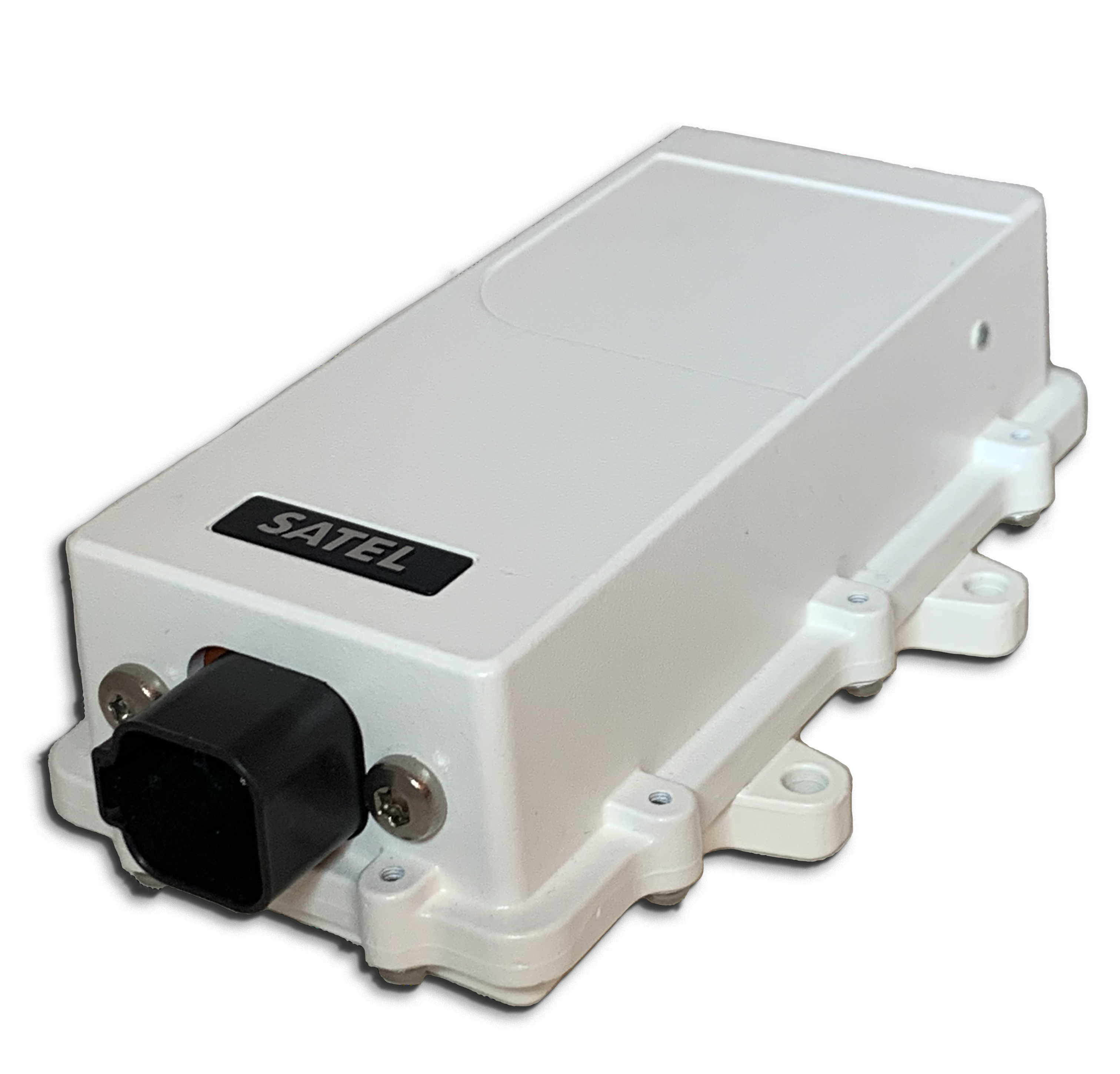

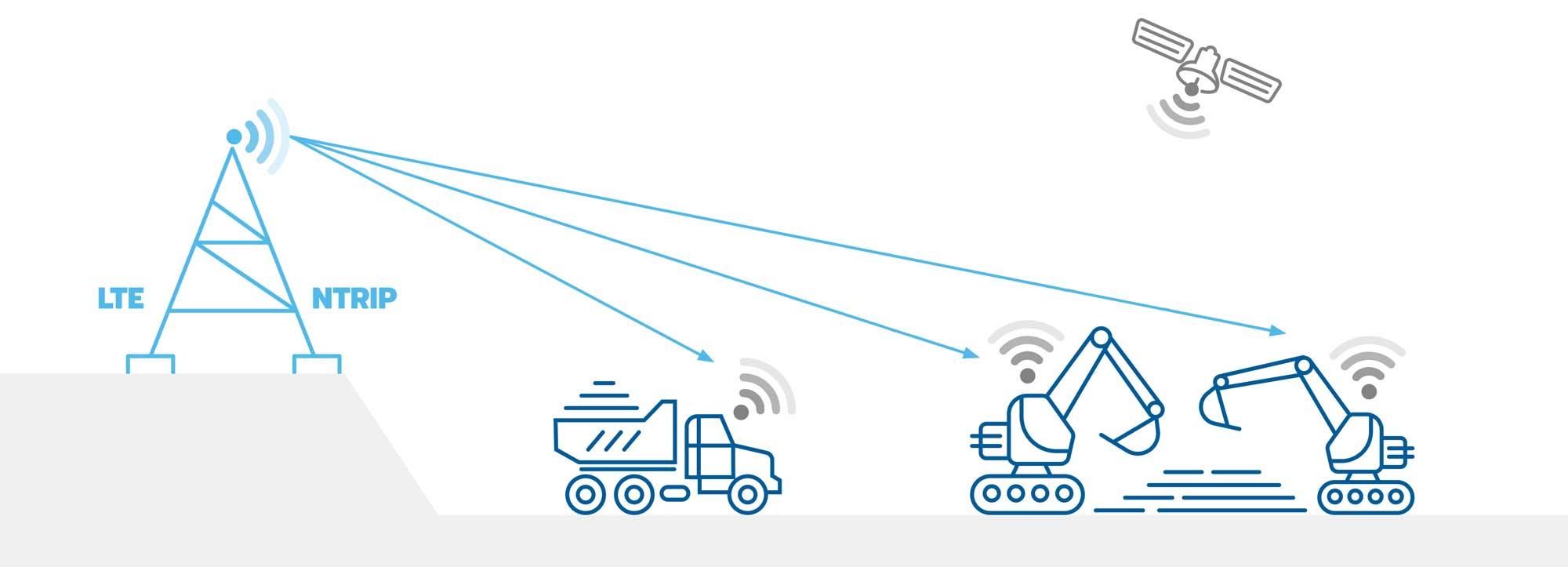

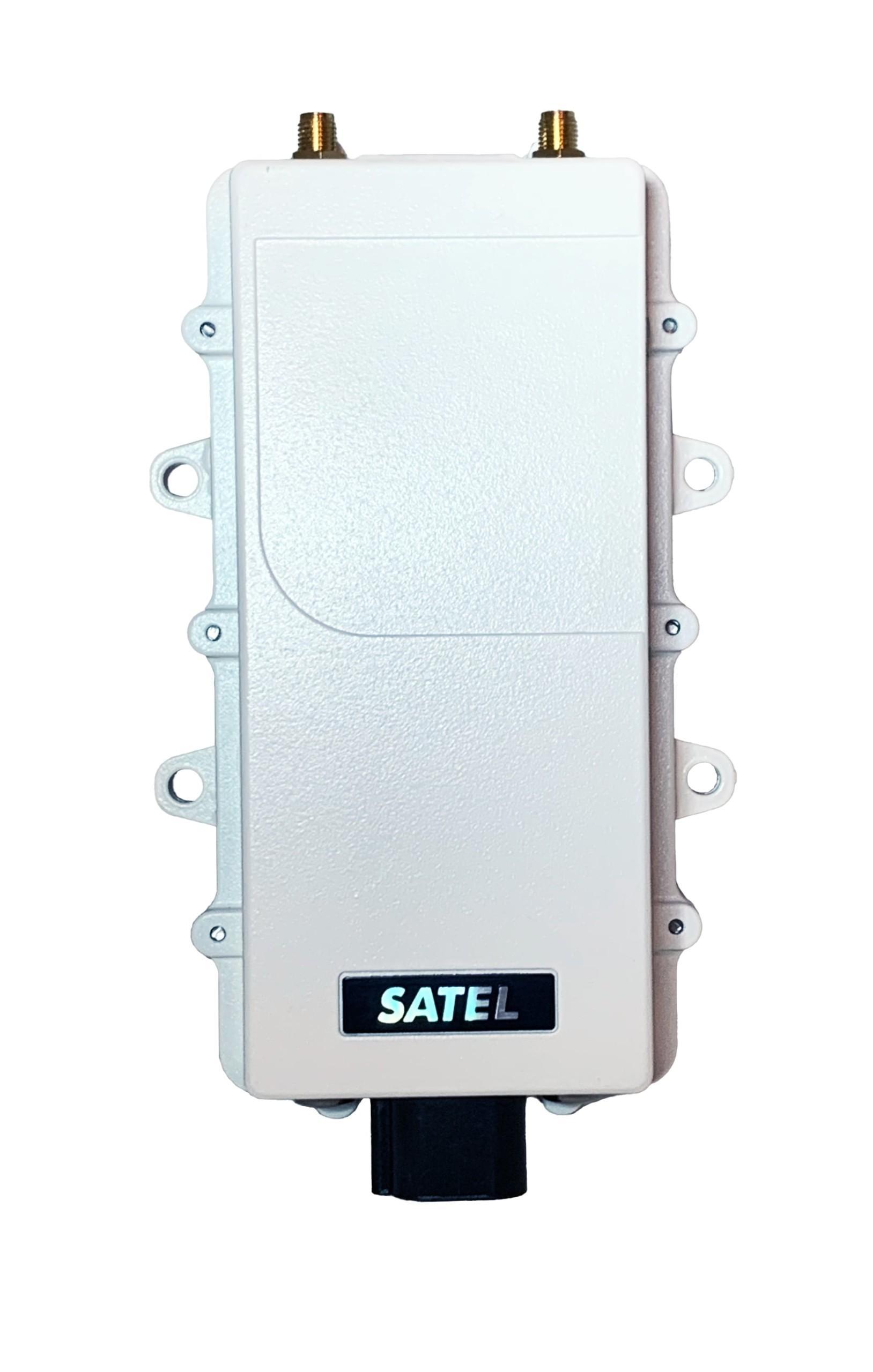

The SATEL MCCU-15 is an RTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE. It combines ultra-high reliability with robust mechanical design and cyber security.
The SATEL MCCU-15 has IP67 and IP69K classification. It is based on field proven mechanics, and all the electrical connections are equipped with surge protection. It is a perfect solution for harsh environments.
Meeting the requirements
- Ultra-high reliability, often with back-up connectivity
- Cyber security
- Constant and low latency
- Confirmed minimum throughput
- Tolerance for very harsh environments
Type approvals for main markets are to be carried out.
CONTACT USIn the EU the product falls under the scope of the radio equipment directive
2014/53/EU (RED). In the USA and Canada, the relevant FCC / ISED parts are fulfilled.
| Free fall | ISO 16750-3:2012 IEC 60068-2-31:2008 |
| Mechanical shock (half sine) | ISO 16750-3:2012 IEC 60068-2-27:2008 |
| Vibration (random) | ISO 16750-3:2012 IEC 60068-2-64:2008 |
| Ingress Protection | IPX9K IEC 20653:2013 IP67 IEC 60529:2013 |
| Safety | IEC 62368-1:2018 Edition 3.0 |
| EMC | EN 301 489-1 v.2.2.3, -3 v.2.1.1, EN 301 489-52 v1.2.1, -19 v2.1.1 EN 55035:2017 + A11:2020 |
| Radiated emissions | EN 55032:2015 + A11:2020 |
| Electrostatic discharge | IEC 61000-4-2 Level 4: 4 kV contact, 8 kV air discharge |
| Radiated filed immunity | IEC 61000-4-3 (2010-04) IEC 61000-4-3:2020 Level 20 V/m |
| Polarity | Reverse polarity protection |
| Temperature and humidity (cyclic) | ISO 16750-4:2006 IEC 60068-2-38:2009 |
Integrated global roaming eSIM and traditional SIM card slot for local operator’s subscription.
Typ. <1W (RTK receive)
| One communication module | LTE (NTRIP application, NMEA position upstream) |
| Serial interface | RS-232 (TD, RD lines) |
| Serial data speed | 4800 – 460800 bps |
| Operating voltage | +9 … +30 VDC (-15% / +20% ) |
| Operating temperature | –30°C to +70°C (operational) |
| Interface connector | Deutsch DT04-6P-CL09 |
| Antenna connector | 50 Ohm, 2 x SMA (LTE) |
| Power consumption | Typ. 2.4 W (NTRIP receive) / Typ. <1 W (RTK receive) |
| Housing | Shielded / bare PCB inside a metal housing |
| Size / Weight | 146 mm x 95 mm x 47 mm / 520 g |
| IP classification | IP67 / IP69K |
| Cellular bands | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B4/B5/B6/B8/B19 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28 LTE-TDD: B38/B39/B40/B41 |
