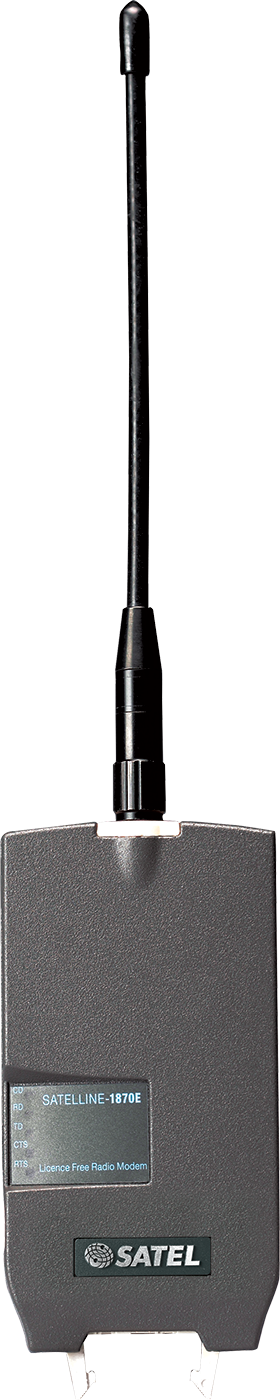

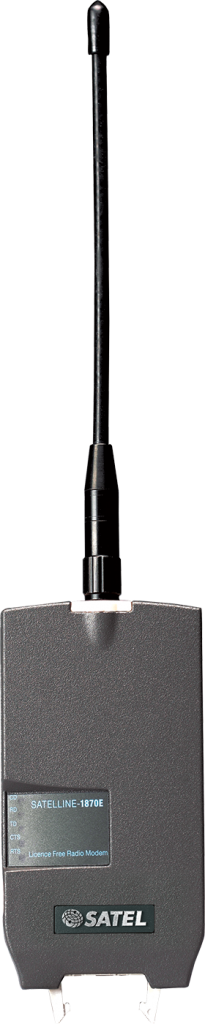

SATELLINE-1870E

The SATELLINE-1870E radio modem provides a wireless transparent data link on the European licence free 868…870 MHz frequency band. It is designed for tight integration into the user’s terminal equipment and is particularly well suited for the transfer of data and control messages in medium range (1-10 km) applications.

  • Good sensitivity
  • Small size
  • Low power consumption

SATELLINE-1870E meets both the technical and economical requirements set on wireless communications in a number of applications, including remote meter reading (gas, electricity, heat), remote control of water distribution, remote control of irrigation systems and environmental monitoring.



Compatible with most user systems and protocols

The SATELLINE-1870E operates in a transparent transfer mode, which ensures compatibility with most user systems and protocols. The settings of the radio modem can be changed from an external terminal in the programming mode or through auxiliary SL-commands during normal operation.

In case there is a need to extend the coverage of the radio modem network, SATELLINE-1870E modems can be used as repeater stations. By using the Store and Forward function, the radio modem buffers the received data and transmits it further using the same radio frequency as in the reception.

The maximum output power of the SATELLINE-1870E is 500 mW, in accordance with the regulations on the use of the 869 MHz band.



Model and product code:

  • SATELLINE-1870E (YM4010)

SATEL offers a wide range of accessories for the products, see here.

CONTACT US
Frequency range 868 … 870 MHz
Details and limitations for frequencies and power are in the user manual
Channel spacing 25 kHz fixed
Sensitivity/Carrier power -115 dBm / 0.5 W
Interface RS-232
Data speed Radio 9600 / RS 19200 bps
Operating voltage +8 … +30 VDC
Power consumption Check the brochure
Size/Weight 125 x 57 x 16 mm / 125 g
Connectors DIN41650-16 pin male / SMA female
