IP radio routers and serial radio modems
The right radio technology for your need
SATEL Proof-TR4 / -TR9
SATEL Proof-TR4 / -TR9 is a heavy-duty radio modem. It has the IP69K rating, which is the highest protection available.
| 403 … 473 / 902 … 928 MHz |
| RS-232 |
| IP69K |
SATEL XPRS Optimum IP radio router
SATEL XPRS Optimum IP radio router works as a cost-efficient core for the SATEL XPRS solution.
| F360…405 / 440…445 MHz |
| Ethernet, RS-232, RS-422/485 |
| 5 W |
SATEL-TR49
SATEL-TR49 is a small dual band and multimode transceiver.
| 410 … 475 / 902 … 928 MHz |
| CMOS-UART |
| 1 W |
SATELLINE-M3-TR9
Freewave and Intuicom compatible frequency hopping transceiver module that is easy to integrate into a host device.
| 902 … 928 MHz |
| CMOS-UART |
| Frequency hopping |
SATEL XPRS IP radio router
IP radio router for IP and serial data connecitivity in mission-critical applications
| FSK: 360…485 MHz QAM: 360…445 MHz |
| RS-232, RS-485/422, ETH |
| 5 W |
SATEL XPRS radio router
Radio router for serial data connecitivity in mission-critical application
| FSK: 360…485 MHz QAM: 360…445 MHz |
| RS-232, RS-485/422 |
| 5 W |
SATEL Compact-4BT
This radio modem combines UHF radio modem, Bluetooth and internal battery with IP67 classified housing.
| 403 … 473 MHz |
| BT2.1 + EDR and BLE 4.1 |
| IP67 |
I/O expansion modules
Hot-swappable expansion modules with different analog/digital inputs and outputs for SATEL-LP
NETCO
Configuration software for SATEL XPRS IP radio routers
Other Software
SaTerm, SATELLINK PC Pro, Configuration Manager, Help Editor, FCS Monitor, Channel List Editor
SATELLINE-EASy
Compact radio modem for long-range applications with wide 90 MHz / 70 MHz tuning range and selectable channel spacing
| 330…420 / 403 … 473 MHz |
| RS-232, -422 |
| 1 W |
SATEL Compact-Proof
IP67 (NEMA 6) classified UHF radio modem with battery back and wide tuning range
| 330…420 / 403…473 MHz |
| RS-232 / 1 W |
| IP67 |
SATEL Compact-Proof (869 MHz)
IP67 classified UHF radio modem with battery back for licence-free 869 or 865 MHz
| 869.4125 … 869.6375 / 865 … 867 MHz |
| 500 mW / 1 W |
| RS-232 |
SATEL EASy-Proof
IP69K classified radio modem even for extremely harsh environmental conditions
| 330…420 / 403…473 MHz |
| RS-232 / 1 W |
| IP69K |

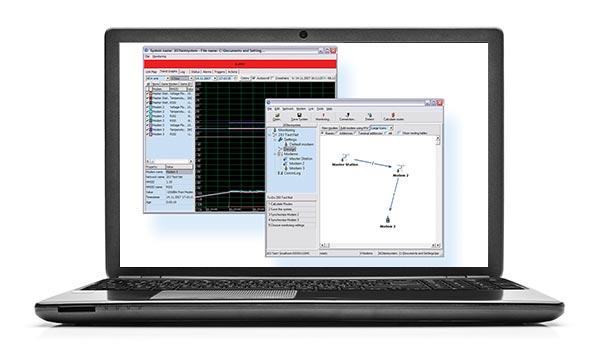

SATEL NMS PC software
Network Management Software for SATELLINE-3AS NMS and VHF modems
SATEL-LP24
Simple I/O and serial communications for short-range, clear line-of-sight applications up to 5 km
| 2.4002…2.4785 GHz |
| 100 mW |
| T-BUS ( for extension units ) RS-232, RS-485 |
SATEL-LP8
Simple I/O and serial communications for short- or middle-range applications of up to 20 km
| 869.4…869.65 MHz |
| 500 mW |
| T-BUS ( for extension units ), RS-232, RS-485 |
SATELLINE-4Pro
IP67 (NEMA 6) classified UHF radio modem with high 35 W output power and high data speed
| 406.180 … 470 MHz |
| RS-232 / 35 W |
| IP67 |
SATEL-LP9
Simple I/O and serial communications for short-range, non-line-of-sight applications or for long-range applications up to 30 km
| 902…928 MHz |
| 1000 mW |
| T-BUS ( for extension units ) RS-232, RS-485 |
SATELLINE-EASy Pro
IP67 (NEMA 6) classified UHF radio modem with high 35 W output power and wide tuning range
| 403 … 473 MHz |
| RS-232 / 35 W |
| IP67 |
SATELLINE-3AS Epic NMS
UHF radio modem with high power 10 W transmitter, diversity reception mode and Network Management System
| 330 … 470 MHz |
| RS-232, 422, 485 |
| 10 W |
SATELLINE-3AS NMS
Radio modem for UHF frequencies with dedicated Network Management System system
| 330 … 470 MHz |
| RS-232, 422, 485 |
| 1 W |
SATELLINE-EASy 869
High frequency radio modem with Pan-European licence-free frequency band
| 869.4125 … 869.6375 / 865…867 MHz |
| 500 mW / 1 W |
| RS-232, TTL, LVTTL, RS-422 |
SATELLINE-3AS VHF
Radio modem for VHF frequencies with advanced Network Management functions
| 135…174, 218…238 MHz |
| RS-232, 422, 485 |
| 5 W |
SATELLINE-1870E
A licence-free lightweight UHF radio modem for medium range applications
| 869.4125 … 869.6375 MHz |
| RS-232 |
| 500 mW |
SATELLINE-3AS Epic DB
Powerful UHF radio modem with 10 W output power and diversity reception, well suited for outdoor use
| 397.5 … 470 MHz |
| RS-232 |
| 10 W |
SATELLINE-M3-TR4
Small UHF data transceiver module with 16FSK modulation and 70 MHz tuning range
| 403 … 473 MHz |
| CMOS / UART |
| 1 W |
SATELLINE-M3-TR3
Small UHF data transceiver module with widen tuning range and selectable channel width
| 403 … 473 MHz |
| CMOS / UART |
| 1 W |
SATELLINE-M3-R4
Small UHF data receiver module with 16FSK modulation
| 403 … 473 MHz |
| CMOS / UART |
| RX Only |
SATELLINE-M3-TR1 869
UHF transceiver module for licence-free 869 / 865 MHz
| 869.400 … 869.650 / 865 … 867 MHz |
| 500 mW / 1 W |
| RS-232, TTL, LVTTL, RS-422 |
SATELLINE-M3-TR1
Data transceiver module with wide tuning range for long-range connections
| 330…420 MHz / 403 … 473 MHz |
| RS-232, 422, LVTTL, TTL |
| 1 W |
SATELLINE-M3-R9
Freewave and Intuicom compatible small UHF data receiver module
| 902 … 928 MHz |
| CMOS / UART |
| RX Only |
SATELLINE-M3-TR8
Flexible UHF data transceiver module ready to use on the Pan-European licence-free channels
| 868 … 870 / 865 … 867 MHz |
| CMOS-UART |
| 500 mW / 1 W |
SATELLINE-M3-TR4 OA
Data transceiver module for traffic applications, complies with Dutch KAR specification
| 403…473 MHz |
| CMOS-UART |
| Complies with Dutch KAR |
SATELLINE-M3 VHF
Customized VHF radio modem enclosed in an aluminum housing
| 135 … 174, 218 … 238 MHz |
| RS-232, 422, 485 |
| 1 W |
