SATEL-B2 with TNC connector

SATEL-B2 MOTHERBOARD WITH ENCLOSURE

SATEL-B2 motherboard and SATEL radio module combinations inside an aluminium enclosure.

horizontal 26-pin motherboard

SATEL-B2 MOTHERBOARD

SATEL-B2 motherboards for easy radio module assembly.

SATEL Proof-TR489

SATEL Proof-TR489 is a multifrequency radio modem with IP69K rating.

403 … 473 / 869.4 … 869.65 / 902 … 928 MHz
RS-232
IP67 / IP69K

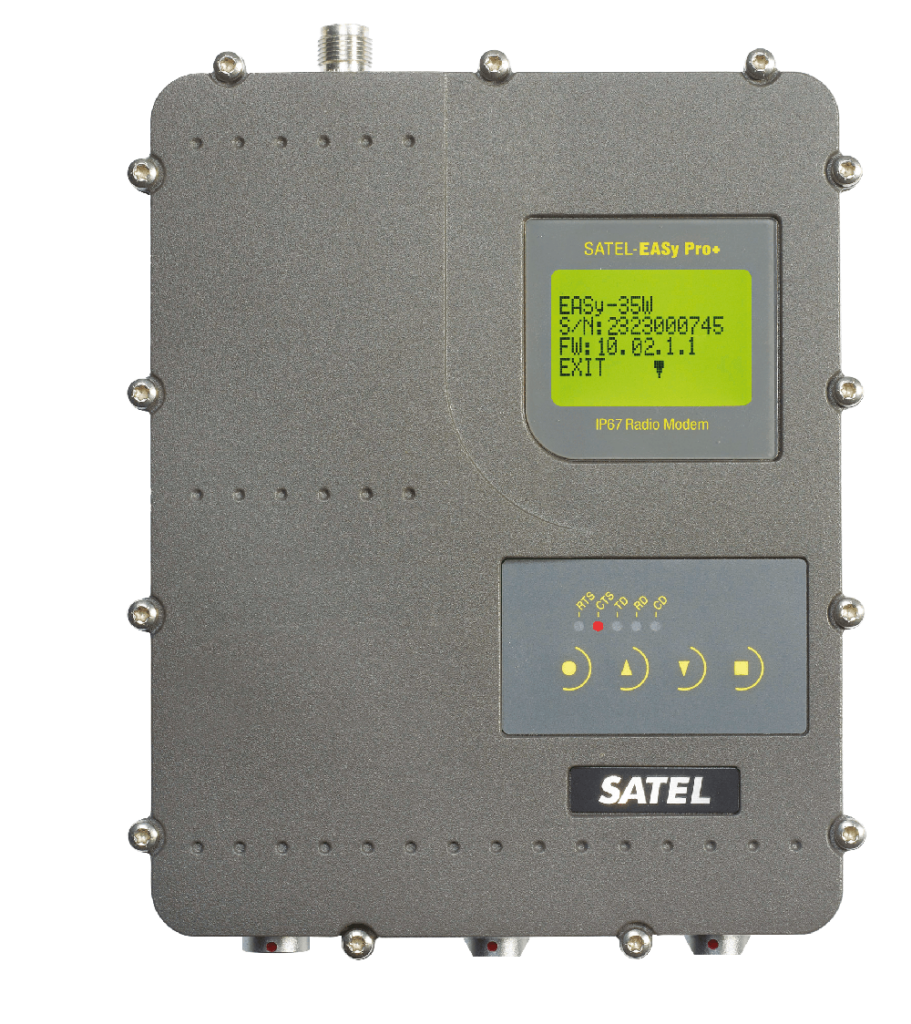

SATEL-EASy Pro+

New IP67 (NEMA 6) classified UHF radio modem with high 35 W output power and wide tuning range

403 … 473 MHz
RS-232 / 35W
IP67
SATEL Proof-R4+

SATEL Proof-R4+

SATEL Proof-R4+ is a heavy-duty receiver only radio modem. It has the IP69K rating, which is the highest protection available.

403 … 473 MHz
RS-232
IP69K

SATEL-TR300

SATEL XPRS logo

SATEL-TR300 is a UHF data transceiver module for low frequencies.

320 …. 380 MHz
CMOS-UART
1 W

SATEL BT-RS232

SATEL BT-RS232 is an IP66-rated robust and waterproof Bluetooth to RS-232 serial port adapter.

SATEL MCCU-20 LTE

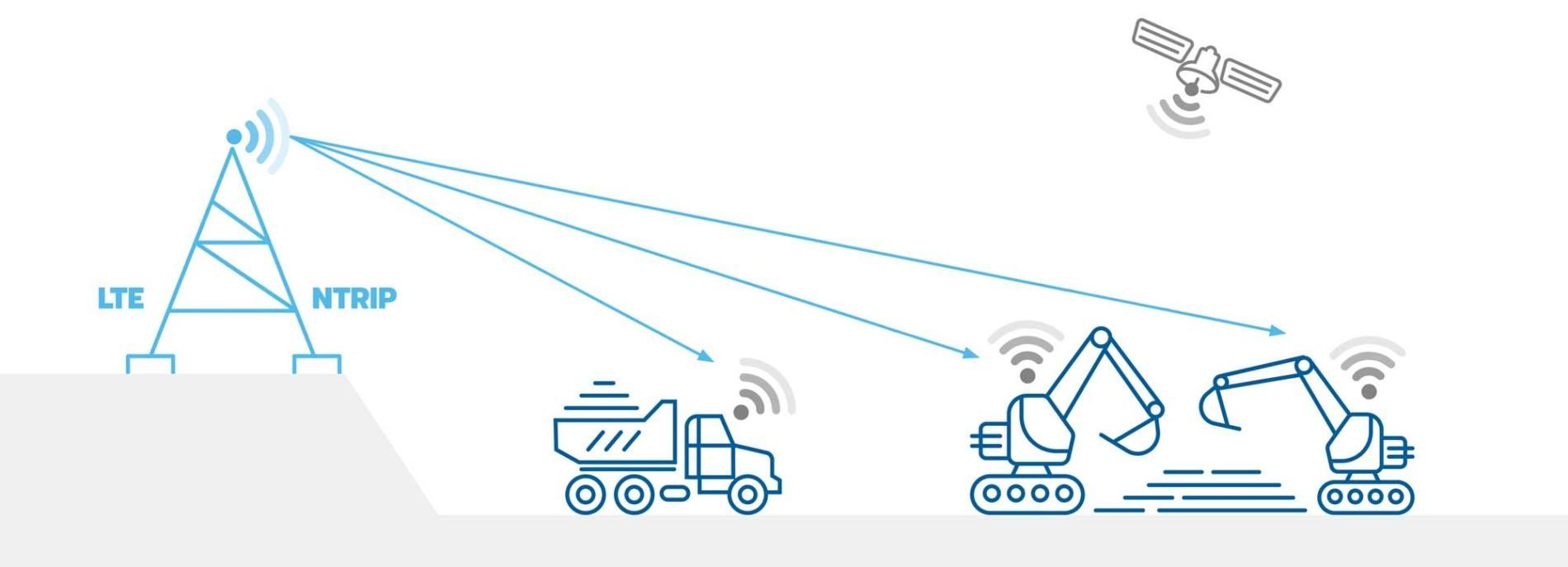

The SATEL MCCU-20 LTE is an RTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE. It combines ultra-high reliability with robust mechanical design and cyber security.

SATEL MCCU-20

SATEL MCCU-20 LTE / UHF

The SATEL MCCU-20 LTE / UHF is a unique dual-technology RTK transceiver for receiving the GNSS RTK correction data to a moving vehicle with UHF radio based RTK or NTRIP over LTE.

SATEL XPRS® radio router, FSK modulation

SATEL XPRS logo

Radio router for serial data connectivity in mission-critical application

FSK: 360…485 MHz
RS-232, RS-485/422
5 W

SATEL NETCO NMS

Network configuration software with radio network monitoring option

Search icon

SOFTWARE – PRODUCT compatibility table

Software compatibility for SATEL products

SATEL NETCO DEVICE

Software for configuring and reprogramming a device

SATEL Proof-TR4+ / -TR9

SATEL Proof-TR4+ / -TR9 is a heavy-duty radio modem. It has the IP69K rating, which is the highest protection available.

403 … 473 / 902 … 928 MHz
RS-232
IP69K

FCS (Free Channel Scan) Monitor

Software for setting the FCS parameters to radio modem

Help Editor

Creating and editing different language versions of SATEL Configuration Manager

SATELLINK PC Pro

Point-to-multipoint software for driving SATEL I/O-converters

SATEL NMS PC

Network configuration, monitoring and diagnostics software

SATELLINE SaTerm

Network configuration, testing and reprogramming software

SATEL-R4+

SATEL XPRS logo

Small UHF data receiver module with 16FSK modulation

403 … 473 MHz
CMOS / UART
RX Only
SATEL-TR module

SATEL-TR489

SATEL XPRS logo

A multifrequency and multimode transceiver with three frequency bands

403…473 / 869.4…869.65 / 902…928 MHz
CMOS-UART
1 W
SATEL-TR module

SATEL-TR4+

SATEL XPRS logo

UHF data transceiver module in a lightweight single board structure, compatible and customizable

403 … 473 MHz
CMOS-UART
1 W

SATEL-TR49 SnapOn

SATEL XPRS logo

SATEL-TR49 SnapOn is a dual band and multimode transceiver that fits into a standard Mini PCIe bus. Uses 410-475 MHz and 902-928 MHz bands. Read more!

410 … 475 / 902 … 928 MHz
USB 2.0
1 W

SATEL-EASy+

SATEL-EASy+ offers a modern solution for various long-range applications.

403 … 473 MHz
RS-232, -422, -485
1 W

SATEL XPRS® Optimum IP radio router

SATEL XPRS logo

SATEL XPRS Optimum IP radio router works as a cost-efficient core for the SATEL XPRS solution.

400…445 MHz
Ethernet, RS-232, RS-422/485
5 W

SATELLINE-M3-R9

SATELLINE-M3-R9 is a frequency hopping spread spectrum receiver module that is easy to integrate into a host device.

 902 … 928 MHz
CMOS / UART
RX Only

Power cables for SATELLINE / SATEL products

Power cables for SATELLINE / SATEL products

SATEL-TR module

SATEL-TR49

SATEL XPRS logo

SATEL-TR49 is a small dual band and multimode transceiver.

410 … 475 / 902 … 928 MHz
CMOS-UART
1 W

SATEL NETCO DESIGN

Network configuration software with graphical user interface

SATEL-GW120

The small and robust 2G/3G/LTE router with WiFi option is perfect for applications like remote monitoring and control, telemetry, SCADA for Utilities as well as M2M communications.

2G / 3G / LTE
2.4 GHz WiFi
GPS receiver

SATEL-GW600

The versatile 2G/3G/LTE wireless router is suitable for a variety of industrial deployments. The compact structure makes it excellent for M2M applications like SCADA, telemetry and intelligent traffic systems.

2G / 3G / LTE
RS-232 and RS-485 serial ports
Digital inputs for event detection

SATELLINE-M3-TR9

Frequency hopping transceiver module that is easy to integrate into a host device.

902 … 928 MHz
CMOS-UART
Frequency hopping

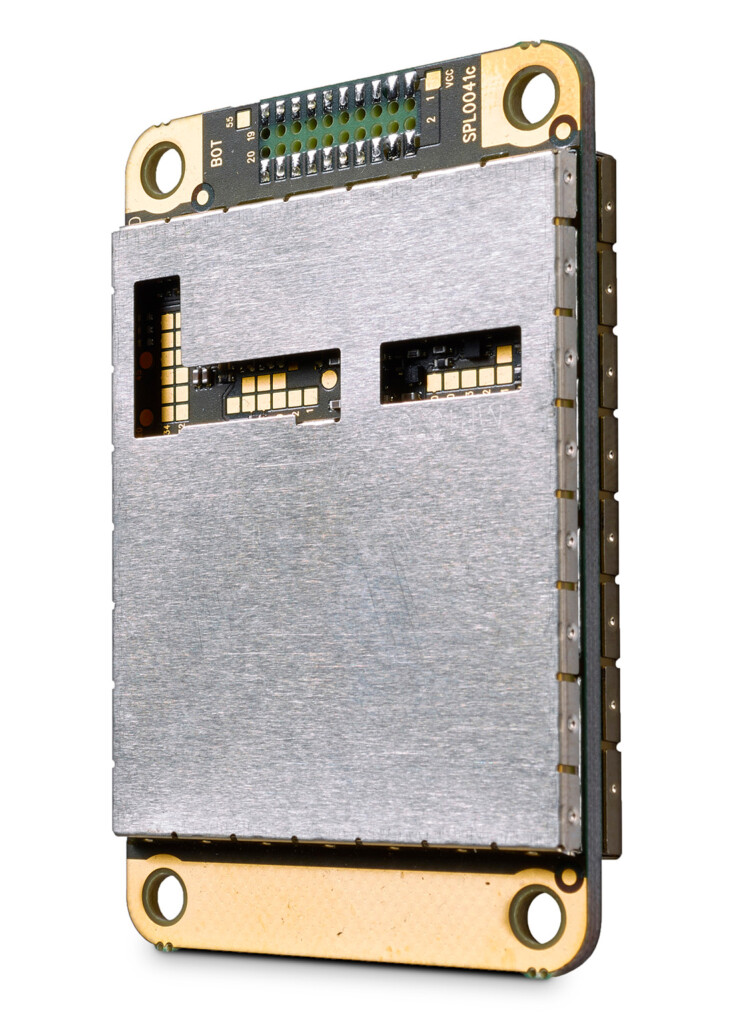

SATELLINE-M3-TR8

Flexible UHF data transceiver module ready to use on the Pan-European licence-free channels

868 … 870 / 865 … 867 MHz
CMOS-UART
500 mW / 1 W

SATELLINE-M3-TR1 869

UHF transceiver module for licence-free 869 / 865 MHz

869.400 … 869.650 / 865 … 867 MHz
500 mW / 1 W
RS-232, TTL, LVTTL, RS-422

SATELLINE-M3-TR1

Data transceiver module with wide tuning range for long-range connections

330…420 MHz / 403 … 473 MHz
RS-232, 422, LVTTL, TTL
1 W

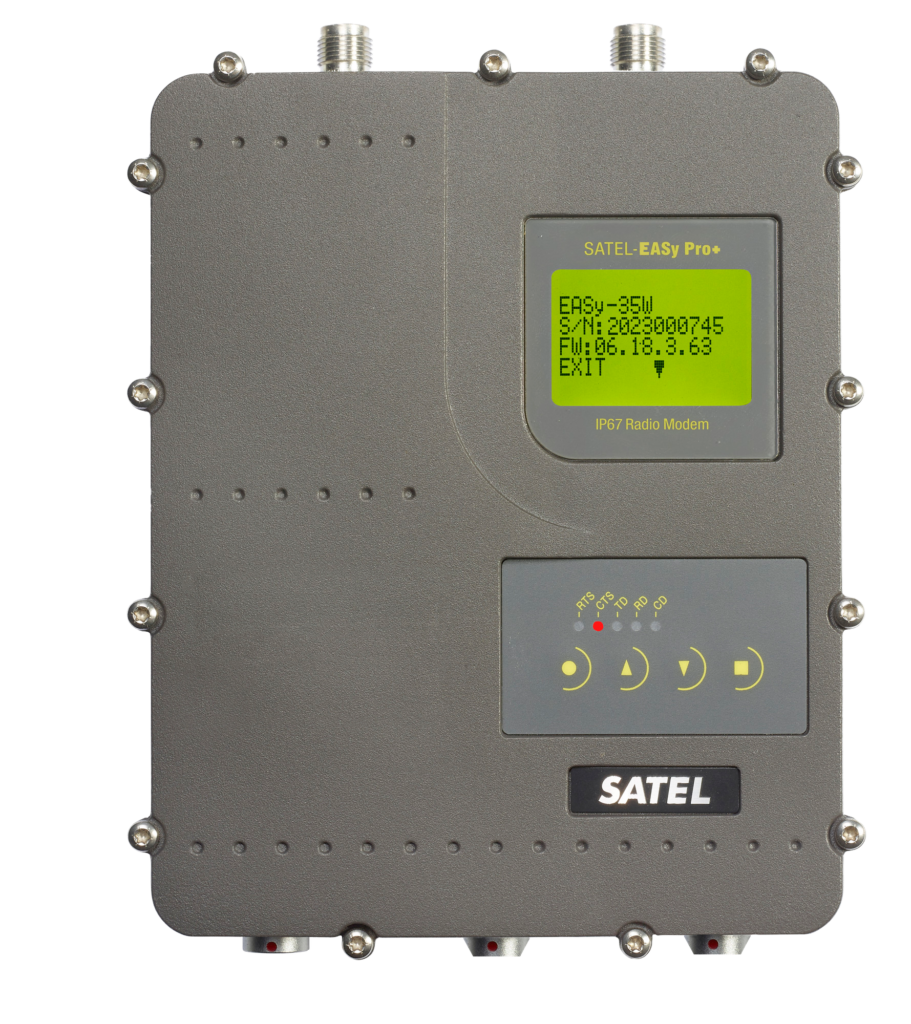

SATELLINE-EASy Pro

IP67 (NEMA 6) classified UHF radio modem with high 35 W output power and wide tuning range

403 … 473 MHz
RS-232 / 35 W
IP67

SATELLINE-EASy 869

High frequency radio modem with Pan-European licence-free frequency band

869.400 … 870 / 865…867 MHz
500 mW / 1 W
RS-232, RS-422

SATELLINE-EASy

Compact radio modem for long-range applications with wide 90 MHz / 70 MHz tuning range and selectable channel spacing

330…420 / 403 … 473 MHz
RS-232, -422
1 W

SATELLINE-3AS VHF

Radio modem for VHF frequencies with advanced Network Management functions

135…174 MHz
RS-232, 422, 485
5 W

SATEL XPRS® IP radio router, QAM modulation

SATEL XPRS logo

IP radio router for IP and serial data connectivity in mission-critical applications

400…445 MHz
RS-232, RS-485/422, ETH
5 W

SATEL XPRS® radio router, QAM modulation

SATEL XPRS logo

Radio router for serial data connectivity in mission-critical application

400…445 MHz
RS-232, RS-485/422
5 W

SATEL Configuration Manager

Configuration and reprogramming software

SATEL I-LINK 300

Extension module for I-LINK 100 I/O converters.

SATEL I-LINK 100

I/O-converter with 4 digital and 2 analog I/Os, also Modbus compatible version available.

SATEL i-LINK

Compact I/O -converter and pulse counter to be used with SATELLINE-1870E modems

SATEL EASy-Proof

IP69K classified radio modem even for extremely harsh environmental conditions

330…420 / 403…473 MHz
RS-232 / 1 W
IP69K

SATEL Compact-Proof (869 MHz)

IP67 classified UHF radio modem with battery back for licence-free 869 or 865 MHz

869.400 … 870 / 865 … 867 MHz
500 mW / 1 W
RS-232

SATEL Compact-Proof

IP67 (NEMA 6) classified UHF radio modem with battery back and wide tuning range

330…420 / 403…473 MHz
RS-232 / 1 W
IP67

RF and interface cables for SATELLINE / SATEL radio modems

RF and interface cables for SATELLINE radio modems

RF and interface cables for IP radio routers

RF and interface cables for SATEL XPRS IP radio routers

Power supplies

Power supplies for SATEL products

Interface adapters and adapter cables for SATELLINE

Interface adapters and adapter cables for SATELLINE radio modems

Antennas for SATELLINE

Half Wave, Quarter Wave, Helix, Directional, Omnidirectional and Portable antennas for SATEL radio modems

Antennas for IP radio routers

Half Wave, Quarter Wave, Helix antennas for SATEL XPRS IP radio routers
