SATEL-TR49 SnapOn

SATEL XPRS logo

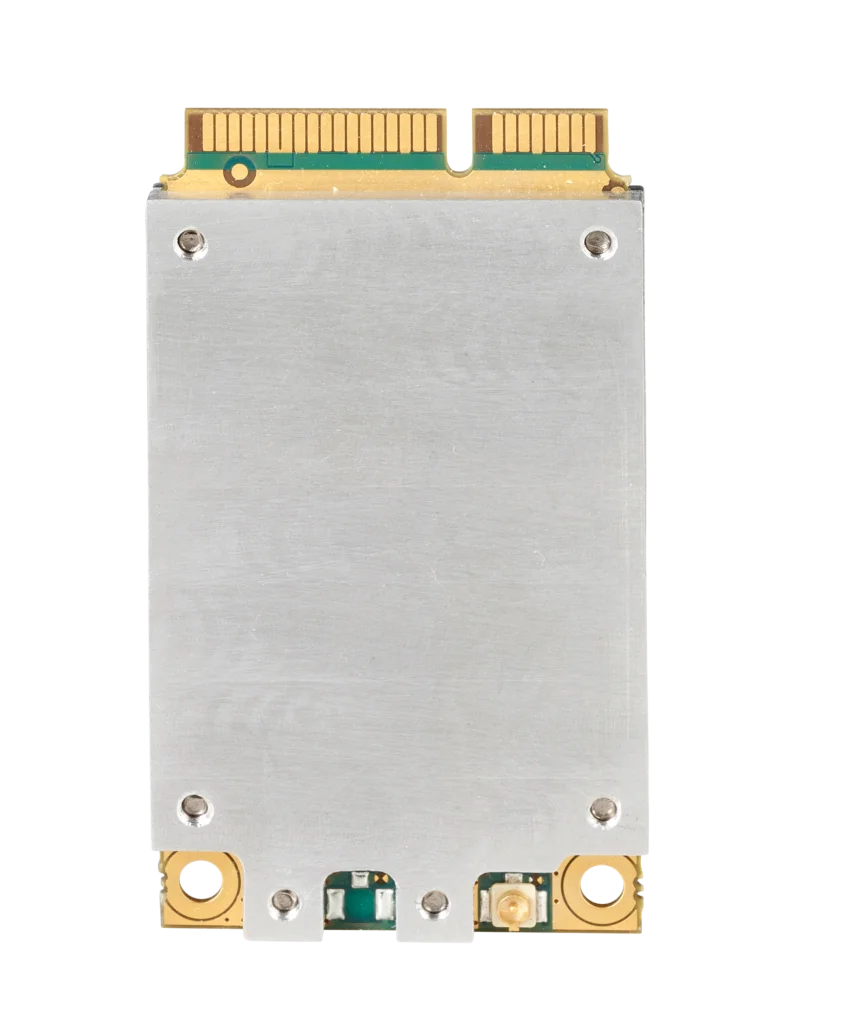

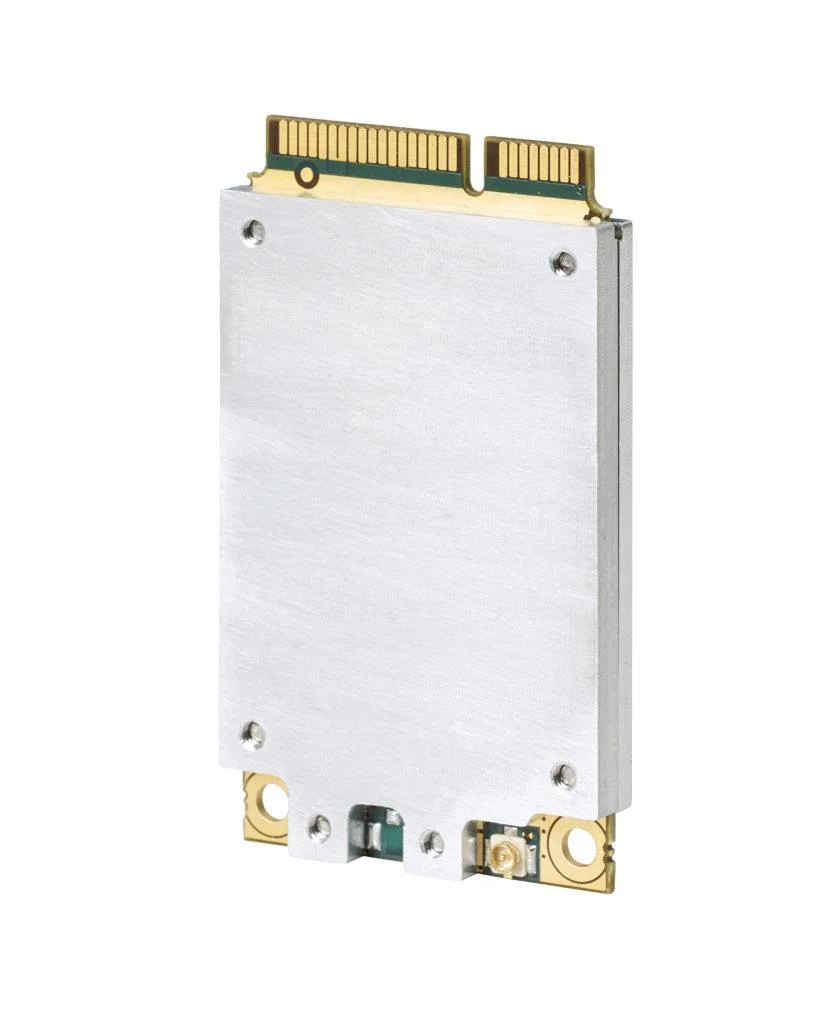

SATEL-TR49 SnapOn is a dual band and multimode transceiver that fits into a standard Mini PCIe bus. This makes it compatible with millions of equipment already in the market, and the integration is easy. If there is a Mini PCIe bus, it can replace other technologies such as cellular and LoRa. The radio module uses the 410-475 MHz and 902-928 MHz bands.



  • Ultra-compact design
  • Easy integration and deployment
  • Possibility of power over USB (max 500 mW, more with extra input)
  • Robust mounting and interfaces

Specifications 902-928 MHz

  • Data rate: 115.2 kbit/s
  • Output power: 10 mW … 1 W
  • Modulation: 2-GFSK
  • Occupied bandwidth: 230 kHz
  • Protocol modes: Point to Multipoint, Point to Point
  • Spreading method: Frequency hopping
  • Hopping bands: 7, user selectable
  • Hopping patterns: 15 per band, 105 total, user selectable
  • Hopping channels: 50–112, user selectable
  • Frequency zones: 16 zones, 7 channels per zone
  • Receiver sensitivity: -109 dBm for 10-4 BER
  • Data speed of serial interface: 9600-115200 bps

Specifications 410…475 MHz

  • Data rate: 9600 bits/s (12.5 kHz channel), 19200 bits/s (25 kHz channel)
  • Output power: 10 mW … 1 W
  • Modulation: 4-GFSK
  • Channel widths: 12.5 and 25 kHz
  • Receiver sensitivity: -120 dBm for 1% BER (12.5 kHz)
  • Data speed of serial interface: 9600-115200 bps

SATEL-TR49 SnapOn is compatible with SATEL products and also with other manufacturers´ radio protocols.



Available models and product codes:

  • SATEL-TR49 SnapOn with AES128 encryption support, all region (YM8600)
  • SATEL-TR49 SnapOn without AES128 encryption support, all region (YM8605)
  • SATEL-TR49 SnapOn with AES128 encryption support, US/CA region (YM8610)
  • SATEL-TR49 SnapOn without AES128 encryption support, US/CA region (YM8615)
CONTACT US
Frequency range 410…475 / 902 … 928 MHz
Vibration tolerance 25 g, up to 2 kHz sinusoidal (over 90 % packet success rate)
Operating voltage 3.3 ± 9% VDC
Power consumption 440 mW (RX) / 3.4 W (TX at 1 W RF power)
Input I/F USB 2.0
Operating temperature –40 … +70 °C
Size / Weight 51 x 30 x 4.75 mm / 10 g
Antenna Connector U.FL
Form Factor PCIe MiniCard full size
