New high power radio

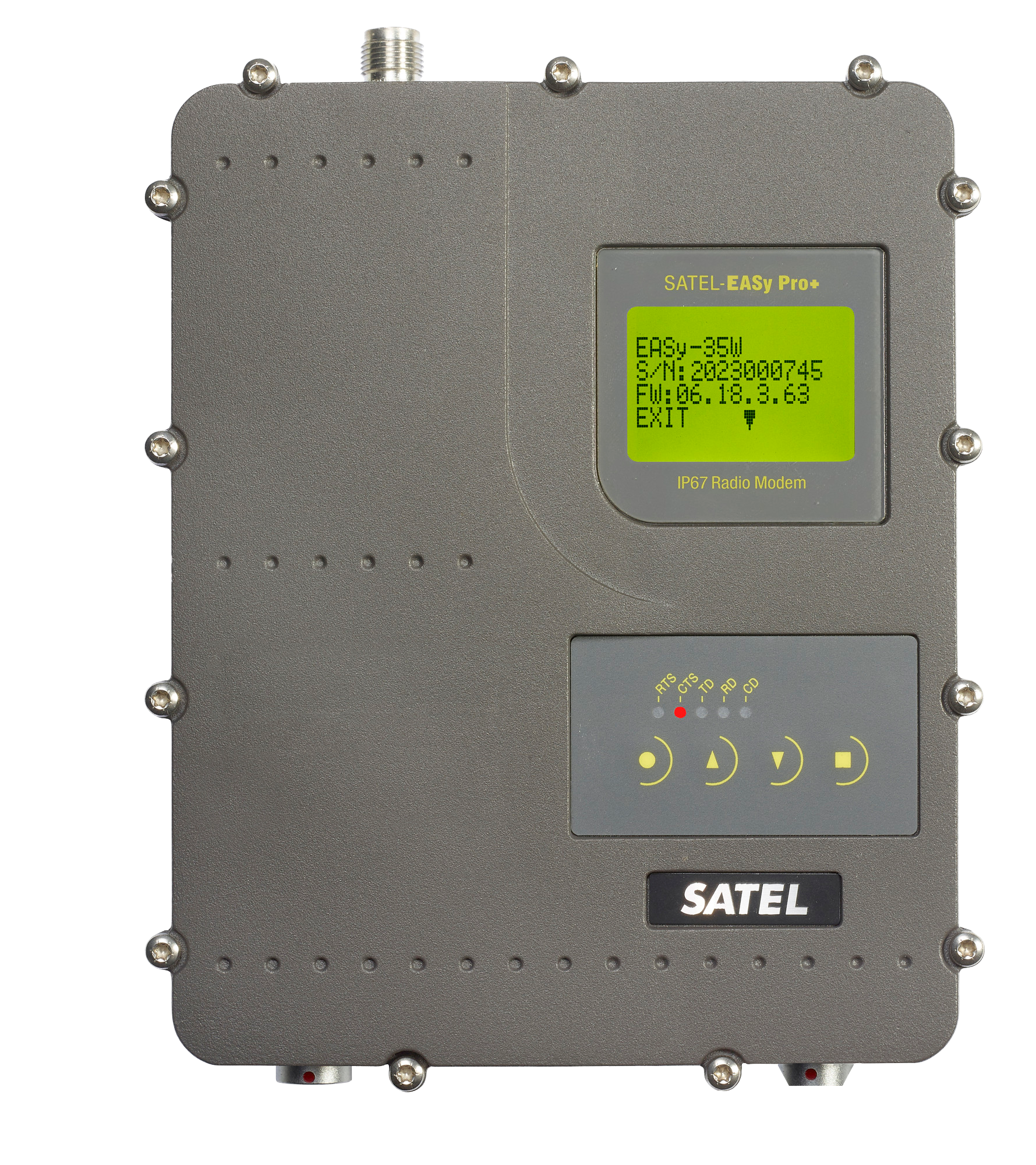

SATEL-EASy Pro+

SATEL-EASy Pro+ is an IP67 classified UHF radio modem with a high power transmitter, wide tuning range (403…473 MHz) in one hardware and selectable channel spacing.
Supported AES128 (by default) / AES256 (as an order option) encryption on radio channel increases the data security. Due to the high transmitting power, connection distances more than 80 kilometres can be covered in favourable conditions.

SATEL-EASy Pro+ is compatible with widely used SATELLINE-EASy and SATEL-EASy+ product families too as well as some obsolete radio modem models, such like SATELLINE-4Pro, SATELLINE-3AS NMS and SATELLINE-3AS EPIC NMS.

More options coming

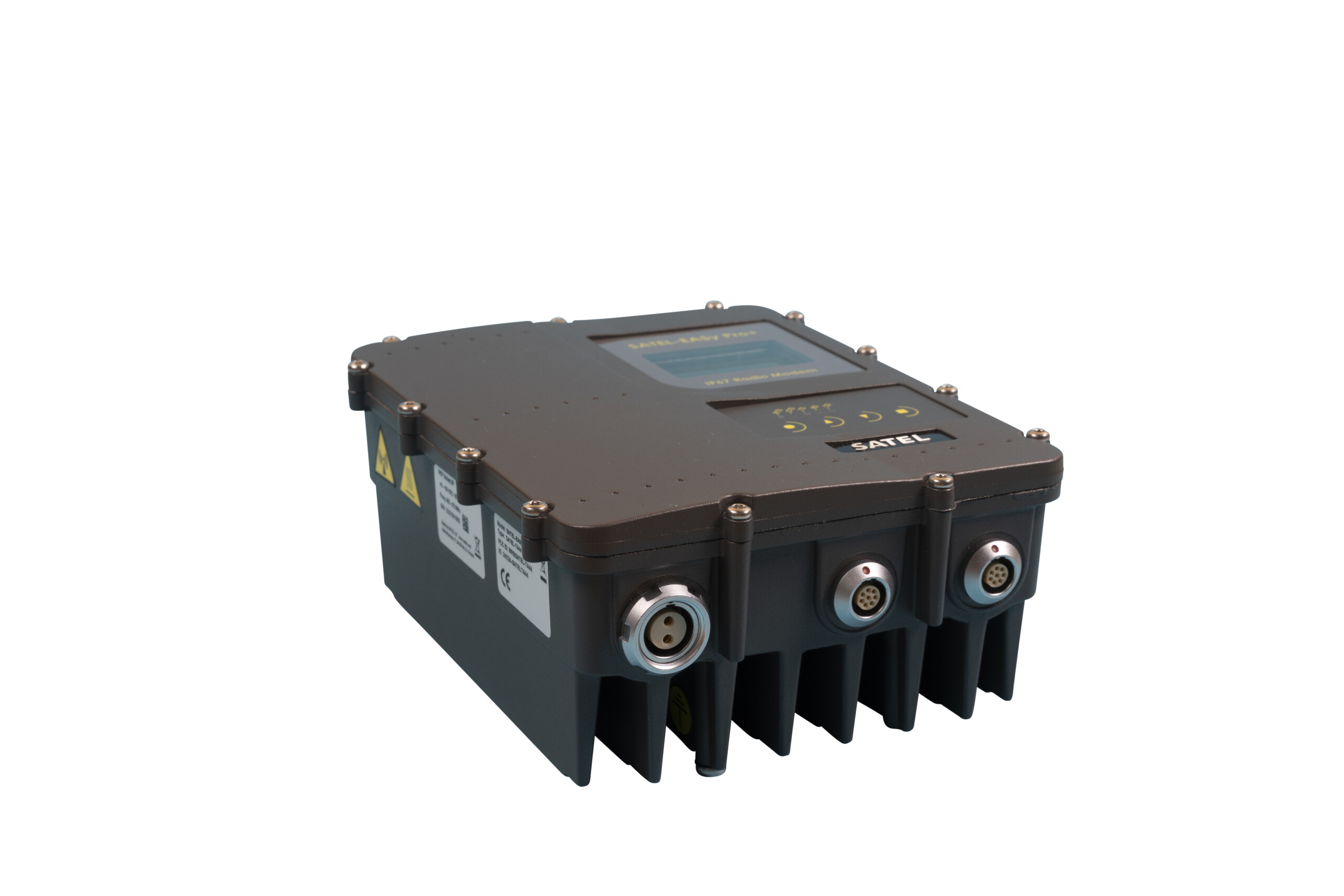

Future options includes dual serial port capability supporting simultaneous data (RS-232 by default, RS-485/-422 data ports optional) and diagnostics output, as well as lower frequency band 320…380 MHz.

Available models and product codes:

  • The model YM6820 is with AES128 encryption support, 25 W, for EU.
  • The model YM6823 is with AES128 encryption support, 35 W.
  • The model YM6825 is w/o encryption support, 25 W, for EU.
  • The model YM6830 is with AES128 encryption support, 25 W, for AU.
  • The model YM6833 is w/o encryption support, 35 W.
  • The model YM6835 is w/o encryption support, 25 W, for AU.
CONTACT US



Frequency range 403 … 473 MHz
Tuning range 70 MHz
Channel spacing 12.5 / 20 / 25 kHz software selectable
Sensitivity max. / Carrier power -114 dBm / 1 … 35 W (Limited 25 W output power is available as an order option)
Interface RS-232 / HW model with data port 2: RS-232/-485/-422 (data/NMS)
Data speed max. Radio 28800 / RS 115200 bps
Modulation 4FSK, 8FSK, 16FSK
Operating voltage +9 … +30 Vdc (-15% / +20%)
Power consumption TX: 9 … 10 W @ 1W output power
TX: 60 … 72 W @ 25 W output power
TX: 84 … 97 W @ 35 W output power
RX: 1.8 … 2.3 W
Sleep mode: 0.9 … 1.4 W
Size weight 180 x 138 x 71 mm with connectors / 1400 g
Connectors Data 8-pin ODU / Antenna TNC n / Power 2-pin ODU
