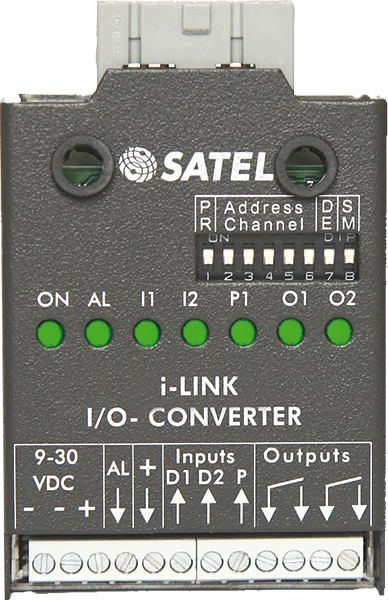

SATEL i-LINK

SATEL i-LINK is a compact, cost-effective member of the SATELLINK product group of I/O -converters. Together with the SATELLINE-1870E radio modems it provides a handy tool for setting up wireless control and surveillance applications based on pulse counting and transfer of digital I/O information.



Key features:

  • 2 digital I/O-ports, solid state relays
  • Fast pulse counter input
  • Point-to-point or multipoint systems
  • Screw connectors to terminal
  • Small and cost effective
  • Ideal for remote controlling systems



Available models and product codes:

  • SATEL i-LINK (YI0090)
CONTACT US
Digital inputs 0 … 30 Vdc
Digital outputs 0 … 30 Vac / 1A
Alarm output 0 … 30 Vdc / 30 mA
Indicators ON/OFF, Analogue / digital IN/OUT, Alarm
Operating voltage +9 … +30 Vdc
Size/Weight 62 x 57 x 15 mm / 60 g
Connectors Screw connectors / 16-pin 2×8 f / DIP
