At the core of the SATEL XPRS solution:

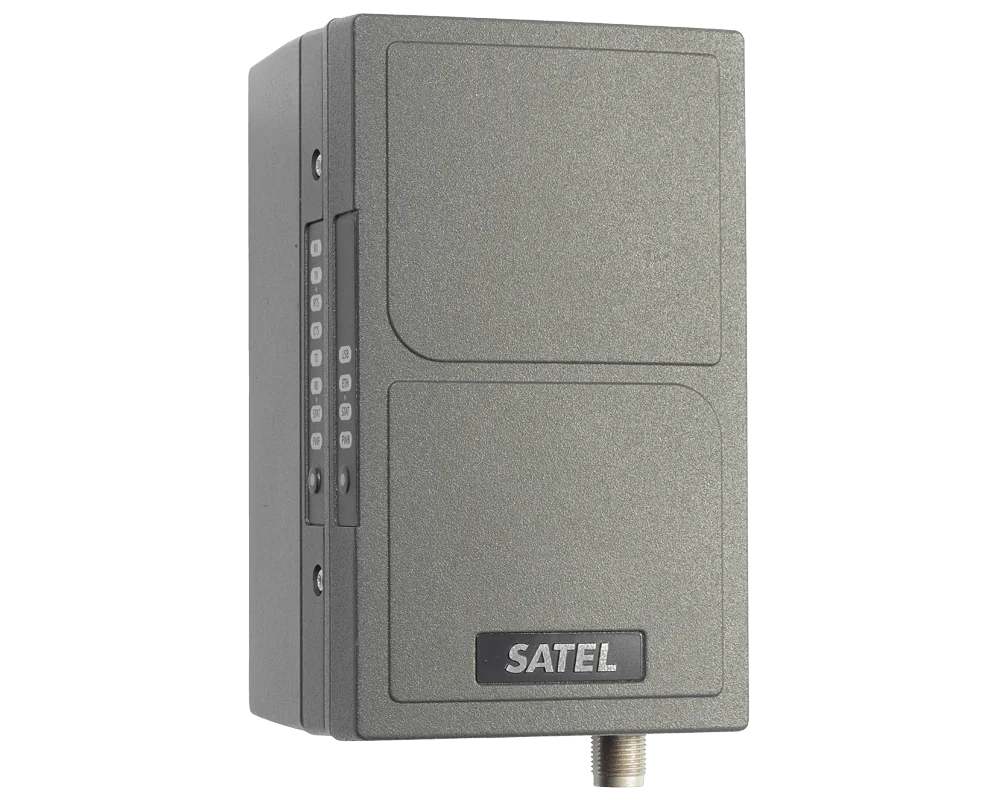

SATEL XPRS IP radio router, QAM modulation

SATEL XPRS IP radio router provides the most reliable data connectivity for mission-critical applications that require stability, high availability, security and long range. It supports both IP and serial data low latency networking. The remote management is easy with the intuitive user interface NETCO. With its advanced coding technologies, excellent sensitivity and performance values, SATEL XPRS wireless router is the market leader in the spectral efficiency.



The digital IP radio router system: central and radio units

A central unit together with a radio unit is typically used in a network as a master station or in locations where Ethernet connectivity is needed. The central unit of SATEL XPRS IP radio router is available with or without display. For radio router stations, the radio unit can be used alone.

SATEL XPRS IP radio router’s range can be tens of kilometers, and it can be extended to hundreds of kilometers with repeater functionality.



At the heart of the

SATEL XPRS



SATEL XPRS IP radio router is used in the SATEL XPRS communications solution. It provides high available connectivity with reliable radio technology and switchover functionality. Redundant routing with adjacent technologies is also provided. In addition to IP communications, support for serial components is ensured by serial modes of operation as well as protocol conversions. This means that network modernization processes can be done in a smart way step-by-step.

The SATEL XPRS IP radio router’s redundant routing monitors the path to intended destinations and in case of path failure it automatically switches to an alternative route. Virtual Router Redundancy Protocol (VRRP) support provides seamless hot-standby switchovers to redundant radio router or other VRRP supporting network device. Together redundant routing and VRRP provide high-available and reliable communication.

VLAN support expands SATEL XPRS IP radio router’s easy integration into even more complex infrastructures. Quality of Service (QoS) enables bandwidth load balancing and sharing between different types of data traffic. Firewall increases security by blocking harmful or unnecessary traffic.



SATEL XPRS IP radio router’s benefits include
  • Meets the mission critical connectivity requirements: high availability, long-range connectivity, easy and error-free deployment
  • Integrated serial and IP networking support and conversions
  • Configuration is easy with NETCO, centralized configuration software
  • Cyber security: data encryption according to AES-128/AES-256 standards, built-in firewall, user authentication, secure browser access



Available models and product codes:

  • SATELLAR XT 5RC QAM without display (YF0210)
  • SATELLAR XT 5RC QAM with display (YF0220)
  • SATELLAR XT 5RC QAM without display and encryption (YF0215)
  • SATELLAR XT 5RC QAM with display, without encryption (YF0225)



SATEL offers a wide range of accessories for the products, see here.

CONTACT US
Frequency range 400…445 MHz
Tuning range 45 MHz
Channel width 12.5, 25 kHz (software selectable)

Frequencies with 6.25 kHz channel spacing

Sensitivity/Carrier power See the brochure
Interface Ethernet, RS-232, RS-422/485
Indicators LED, display
Data speed 121 kbps@25 kHz, 64QAM modulation
Operating voltage range +12.5 … +25 Vdc (-15% / +20%)
Power consumption See the brochure
Size (LED side view)/Weight RU+CU 130 x 77.2 x 76.5 mm / 940 g
Connectors Power, RF (TNC female), ETH (RJ45), USB-A, USB-B
CRS-9 (YC0201) Length 2 meters, with D9 male / D9 female connectors
CRS-9M (YC0203) Length 2 meters, with D9 male / D9 male
RJ45, CAT6 (YC0750) Length 1, 3 or 10 m cable
CRS-Y (YC0500) Length 1.5 meters, with D9 male / 2 x D9 female connectors from Master modem to user system and NMS PC
CRS-KU4 (YC0290) Length 1 meter, with D9 male / RJ45 from radio router to KU40 / KU52 products
CRF-1 (YC1101) RG58, lenght 1 meter with TNC male / TNC female -connectors
CRF-5F (YC1105) /
CRF-5M (YC1106)
RG-58, lenght 5 meter with TNC male / TNC female -connectors OR CRF-5M TNC male / TNC male -connectors
CRF-50 (YC1150) Length 50 cm cable TNC male / TNC male from band-pass filter to radio
ECOFLEX10 (YC1004) Low loss (0.9 dB / 10 m) cable for cable lengths over 20 meter with N or TNC -connectors
ECOFLEX15 (YC1005) Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors
Antennas Halfwave, quarter wave, Helix, directional and omnidirectional antennas
PS-DIN-2 (YP0118) Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A, size 78 x 93 x 56 mm
A-AC (YP0115) Power supply for tabletop or wall mount usage, Input 100–240 Vac /
Output 15 Vdc / 4.6 A
SATELLAR-PWR (YC0330) Power cable, 1.5 m, 2.5 A fuse
